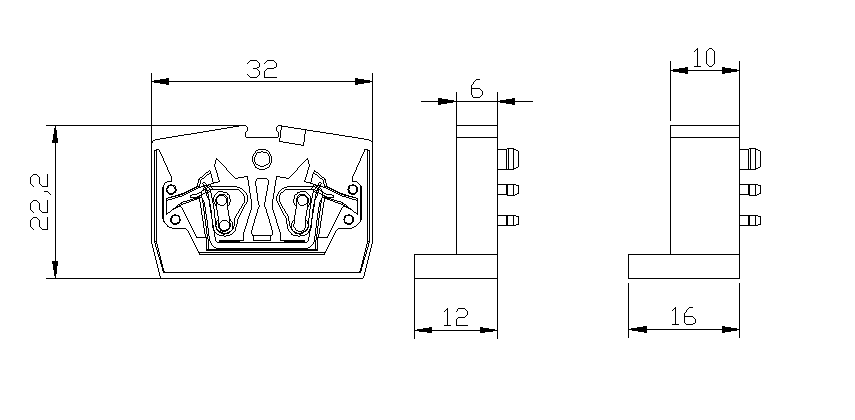

Mei TW4-420 Series Miniature Terminal Strip Holder
model | TW4-420 | ||
Wiring range | AWG/mm 2 | 24-14/0.2-2.5 | |
Technical data | IEC | UL | |
Rated voltage | V | 800 | 600 |
Rated current | A | twenty four | 20 |
Rated impulse voltage | KV | 8 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃～+105℃ | ||
can choose colour | grey, white grey, orange, yellow, chartreuse | ||
Contact material | Phosphor bronze tinned | ||
Shrapnel material | Stainless steel | ||
Wiring | spring clip | ||
Applicable lead | 0.2-2.5mm 2 types of wires | ||
Stripping length | 8-9mm/ 0.33in | ||
TW4-2: end plate; with mounting lugs; thickness 4 mm; grey
TW4-5: digital marker strip, can also be printed with special characters according to customer requirements, suitable for miniature front terminal blocks
